Find your way around Wowza ClearCaster Manager

Wowza ClearCaster™ Manager enables you to easily configure, manage, and monitor Wowza ClearCaster live stream broadcasts. This article introduces the different parts of the Wowza ClearCaster Manager browser-based application to help you find your way around the user interface.

Get started


Before you can do much with Wowza ClearCaster Manager, you must set up your ClearCaster appliance and register it with your Wowza™ account. If you're using it in Facebook mode, you'll need to pair it with a Facebook account.

To access Wowza ClearCaster Manager, go to clearcaster.wowza.com and sign in with your Wowza account.

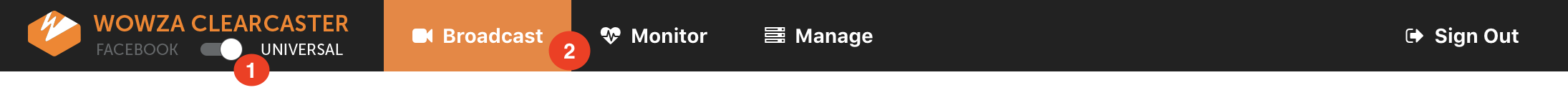

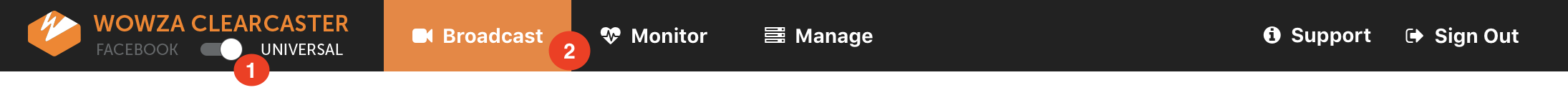

Navigate between Wowza ClearCaster Manager modes


Toggle between Universal mode, where you can broadcast to any RTMP destination, or Facebook mode, where all broadcasts go to Facebook with optional simulcasting to the Wowza Streaming Cloud service.

Universal mode

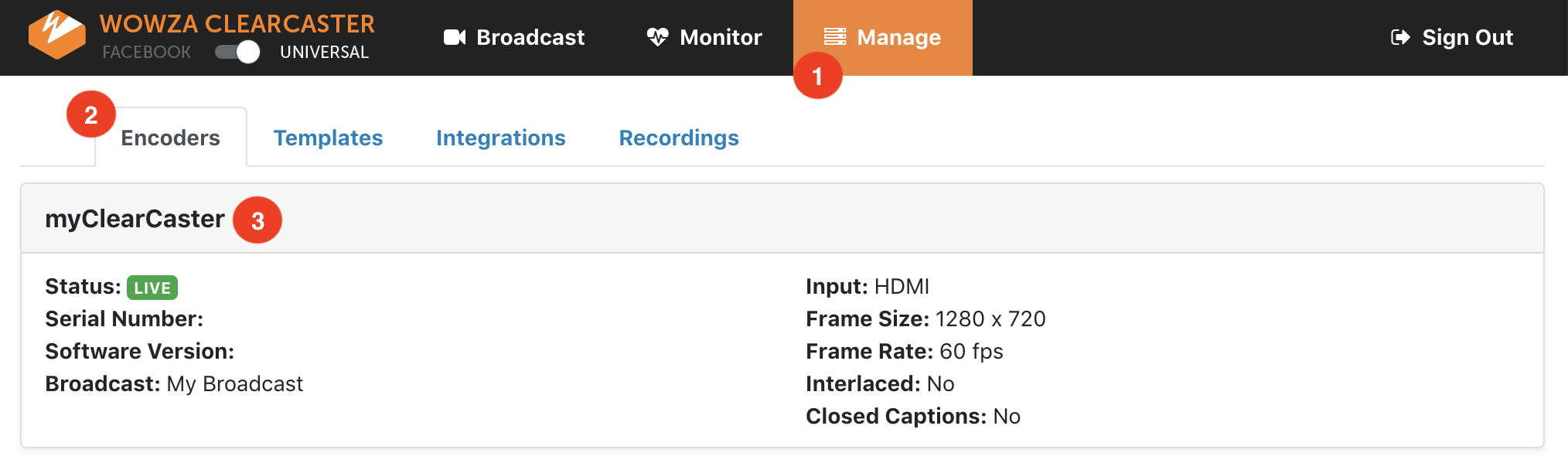

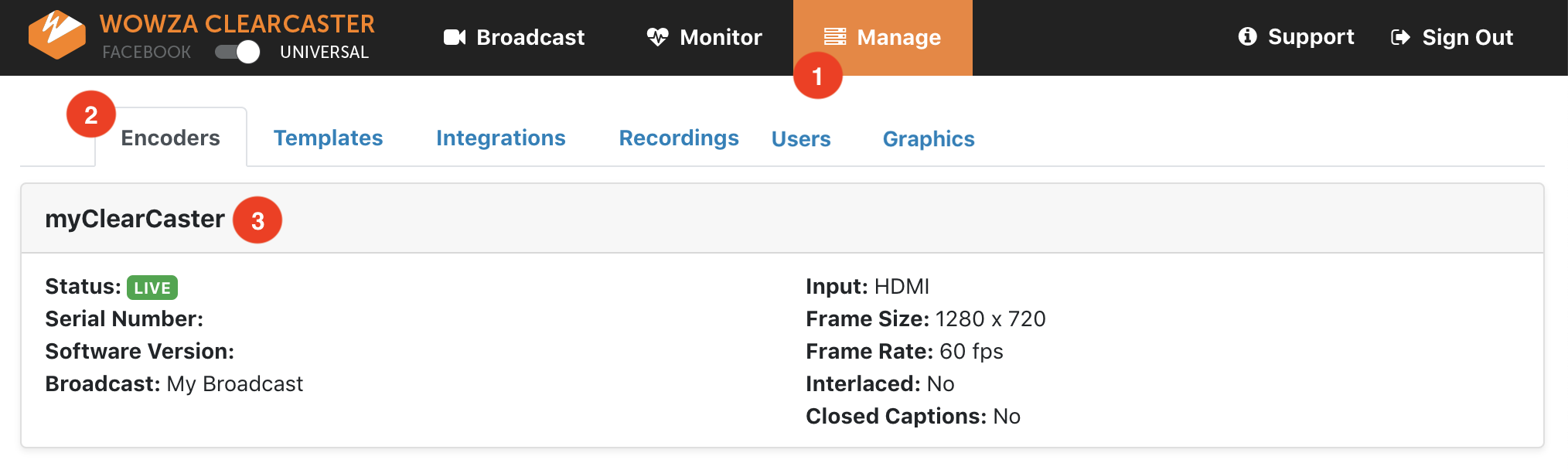

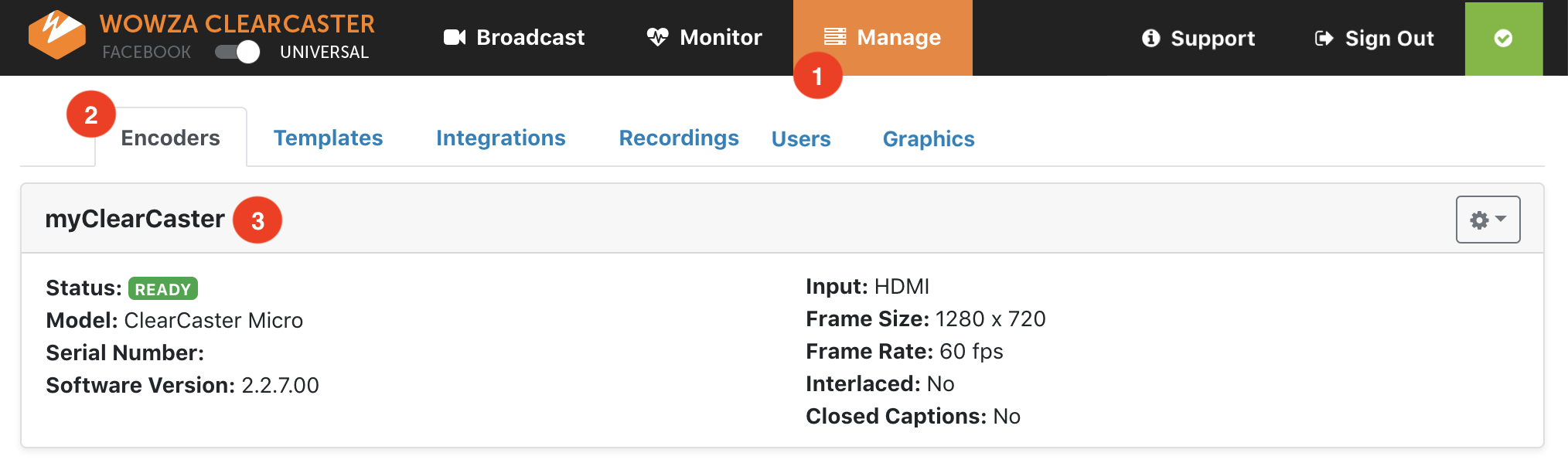

Manage ClearCaster appliances in Universal mode

1 Use the ClearCasters tab to access a list of Wowza ClearCaster appliances registered to your Wowza account and running in universal mode. From this page, you can a list of the associated ClearCaster appliances.
2 View a quick summary of each ClearCaster appliance for which your Wowza account has admin access. In this view, you can see whether the appliance is currently publishing a live stream broadcast or if the appliance is off-air. You can also see some additional information about the ClearCaster appliance health.

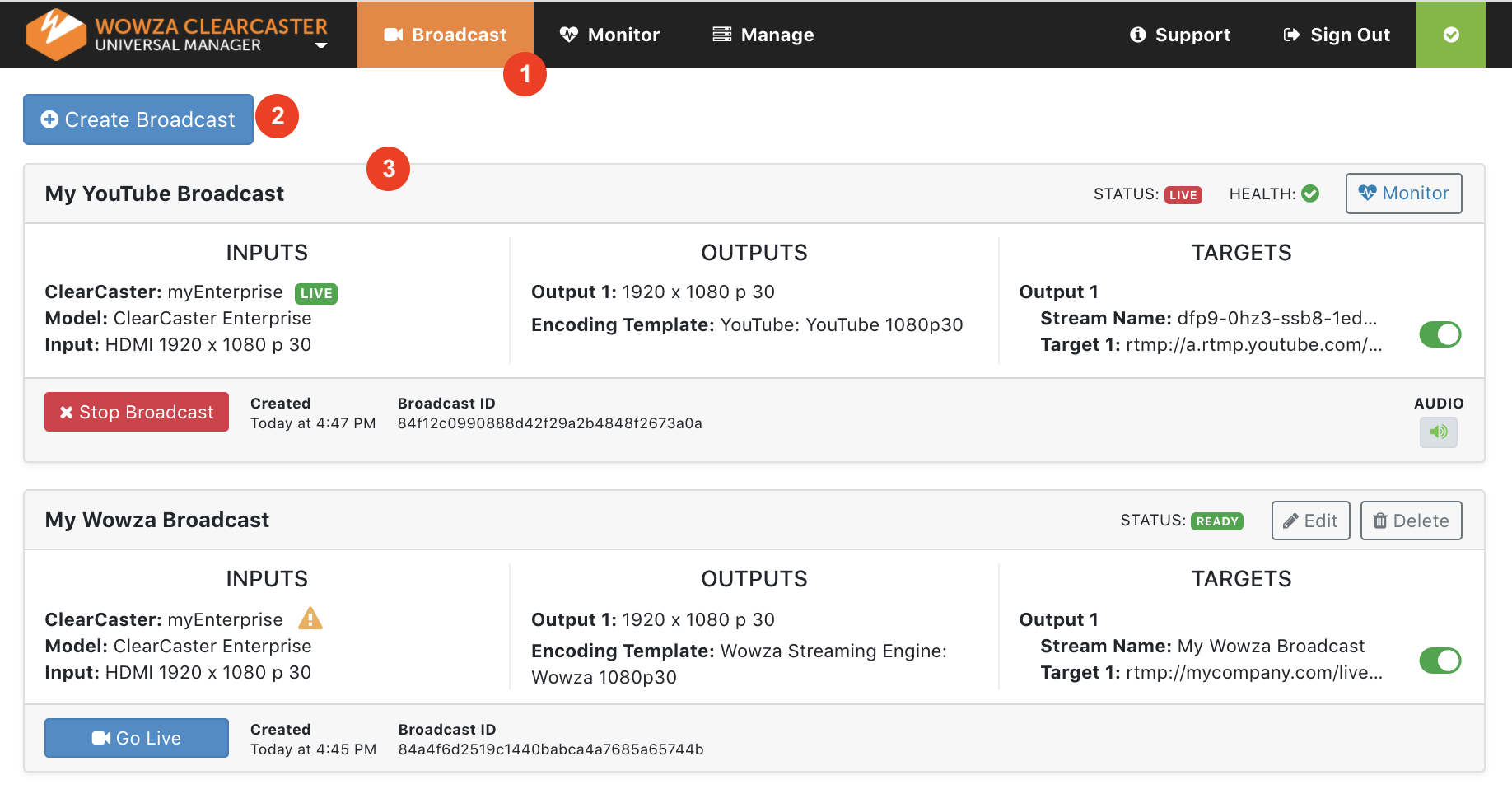

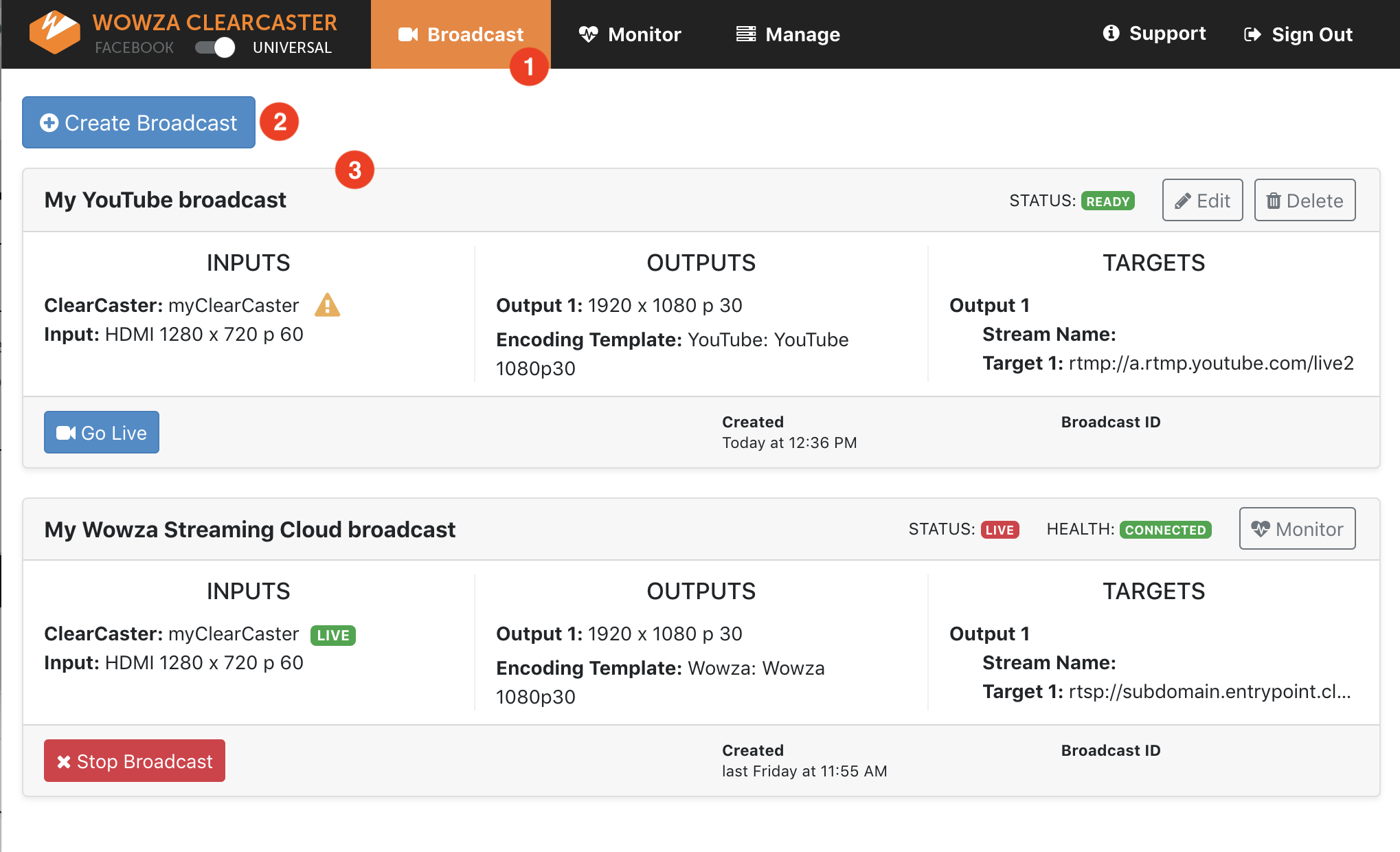

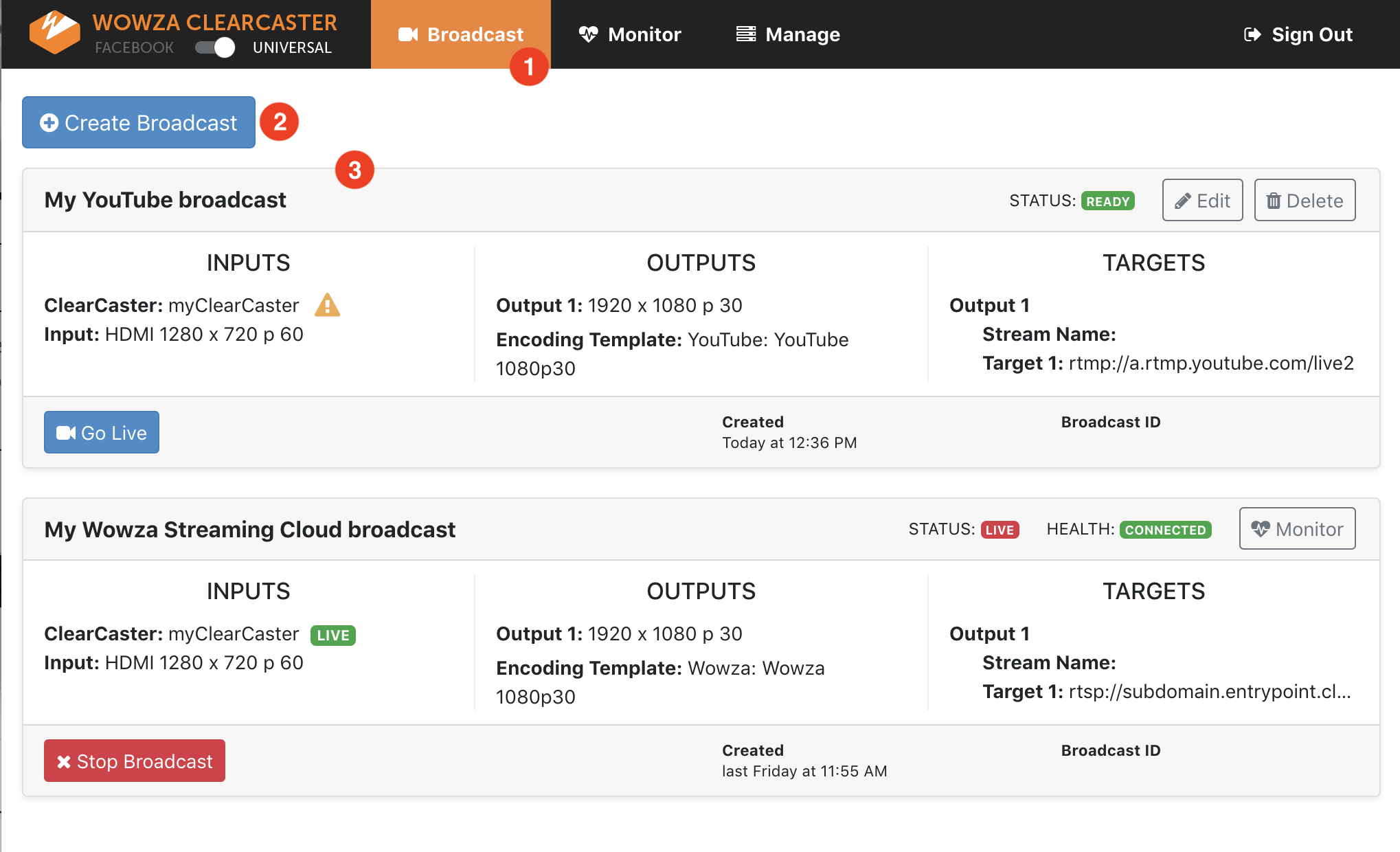

Manage broadcasts in Universal mode

universal mode broadcast list

1 Use the Broadcasts tab to access a list of live, preview, and draft broadcasts associated with your Wowza account. From this page, you can create new broadcasts, manage existing broadcasts, and monitor and end live broadcasts.
2 Click Create Broadcast to create a new universal broadcast. See Create and manage Wowza ClearCaster broadcasts in universal mode.
3 View a list of all universal broadcasts currently associated with your Wowza accounts. Use this page to Edit your broadcasts, Go Live, monitor the health and performance of live broadcasts, and Stop Broadcasts

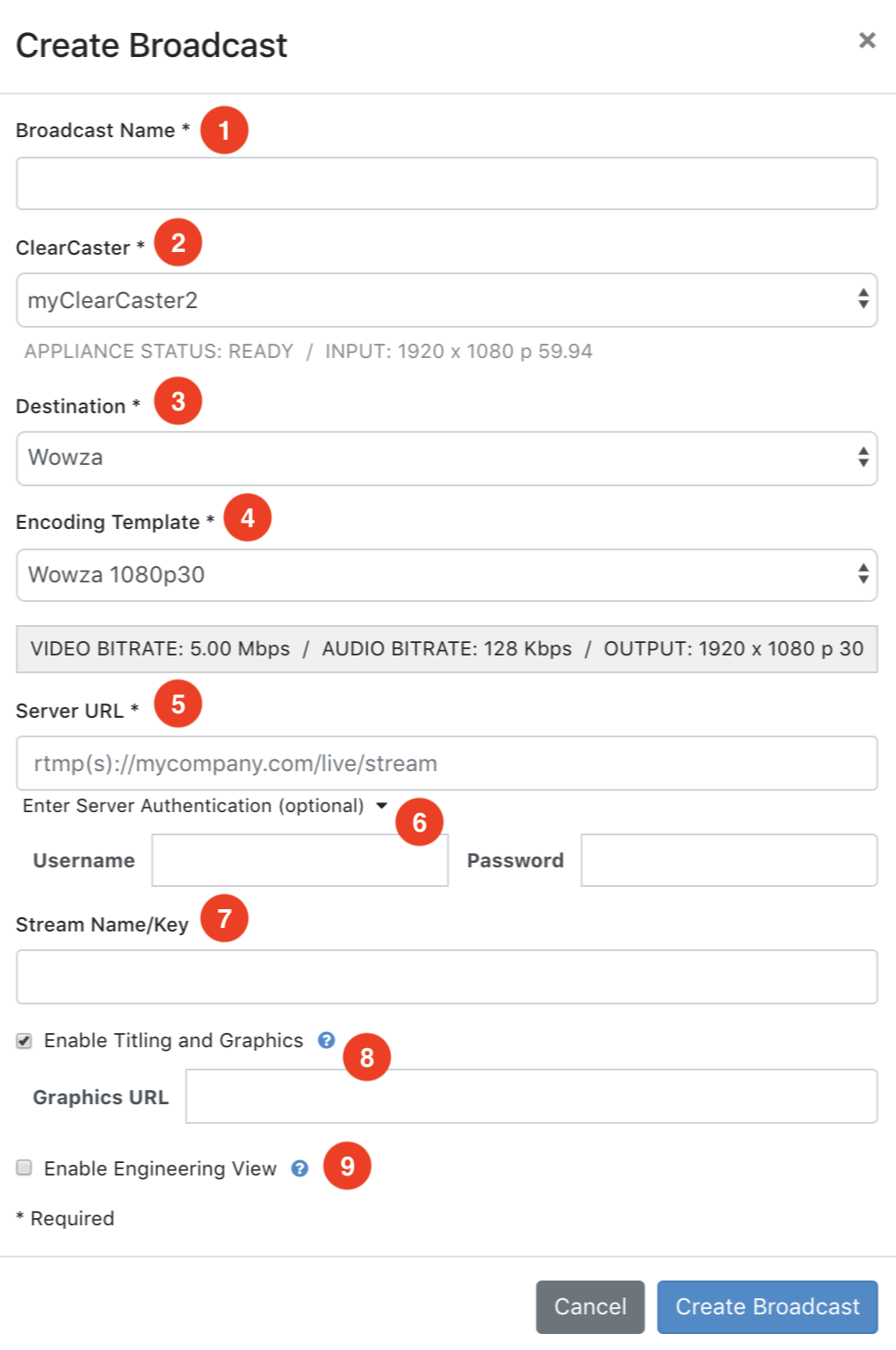

Configure universal broadcasts

1 Add a descriptive Broadcast Name so you can tell your broadcasts apart. We recommend including the destination and output settings in the name.
2 Select the ClearCaster appliance to use.
3 Select the Destination to which you want to stream the broadcast. Use one of the named destinations, such as YouTube or Twitter, or General to stream to a different RTMP-based destination. Select Wowza to stream to a Wowza Streaming Engine instance or the Wowza Streaming Cloud service.
4 Select an Encoding Template that is pre-tuned for your destination.
5 Specify the RTMP or RTMPS URL for your destination.
6 If your destination requires it, enter your server authentication Username and Password. For example, Wowza Streaming Engine instances require authentation for RTP and RTMP sources by default.
7 Enter your destination's Stream Name or Key.
8 Optionally, Enable Titling and Graphics. If using titling and graphics, you must then specify the Graphics URL.
9 Optionally, Enable Engineering View, which can provide additional stream health data on a connected HDMI external monitor.

Facebook mode


Navigate Wowza ClearCaster Manager in Facebook mode

1 The toggle points to Facebook mode, where all broadcasts go to Facebook with optional simulcasting to the Wowza Streaming Cloud service.
2 Click the tabs on the menu bar to access features that help you manage your ClearCaster appliances (the ClearCasters tab), live stream broadcasts (the Broadcasts tab), and simulcast targets for simultaneously broadcasting to Facebook Live and Wowza Streaming Cloud™ (the Simulcast tab).
3 Click Account to sign in or out of your Wowza and Facebook accounts and manage support contacts associated with the Wowza account. Click Support to see a list of video and documentation resources as well as contact information for Wowza Support.

Manage ClearCaster appliances in Facebook mode

1 Use the ClearCasters tab to access a list of Wowza ClearCaster appliances registered to your Wowza account. From this page, you can configure and manage the associated ClearCaster appliances.
2 View a quick summary of each ClearCaster appliance for which your Wowza account has admin access. In this view, you can pair and unpair Facebook accounts and see whether the appliance is currently publishing a live stream broadcast, if it's associated with a broadcast in preview, or if the appliance is off-air. You can also configure appliance-level broadcast settings (Settings), access additional information about the ClearCaster appliance (Info), and view stream health metrics when a broadcast is live or in preview (Monitoring). Additionally, if the ClearCaster is associated with a broadcast, a link to the broadcast is provided.
3 Activate new Wowza ClearCaster appliance and associate them with your Wowza account.

View appliance information

The Info dialog is always available for all ClearCasters with Admin Access.

The Info dialog displays information about the ClearCaster appliance, software version, network addresses, and status. You can also Send Logs to Wowza support if you need assistance.

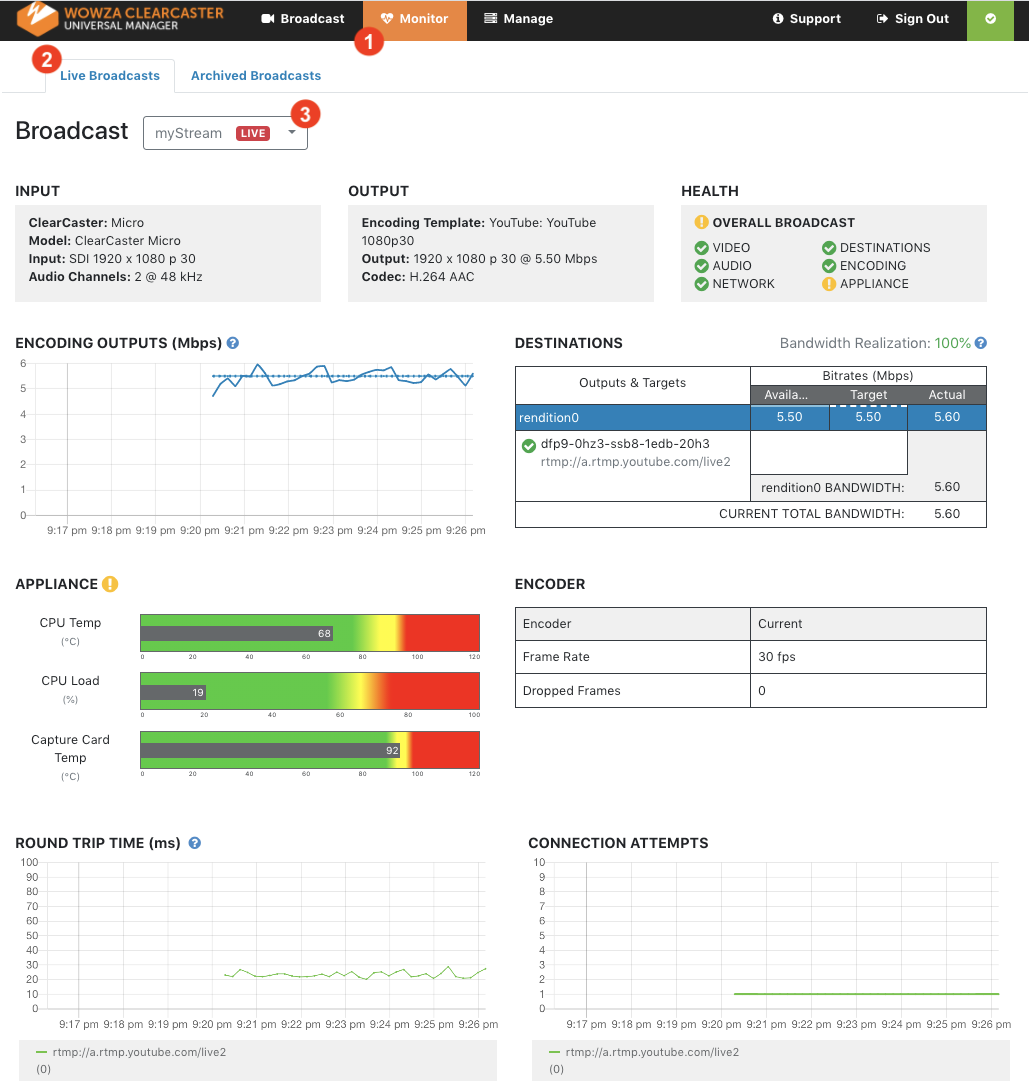

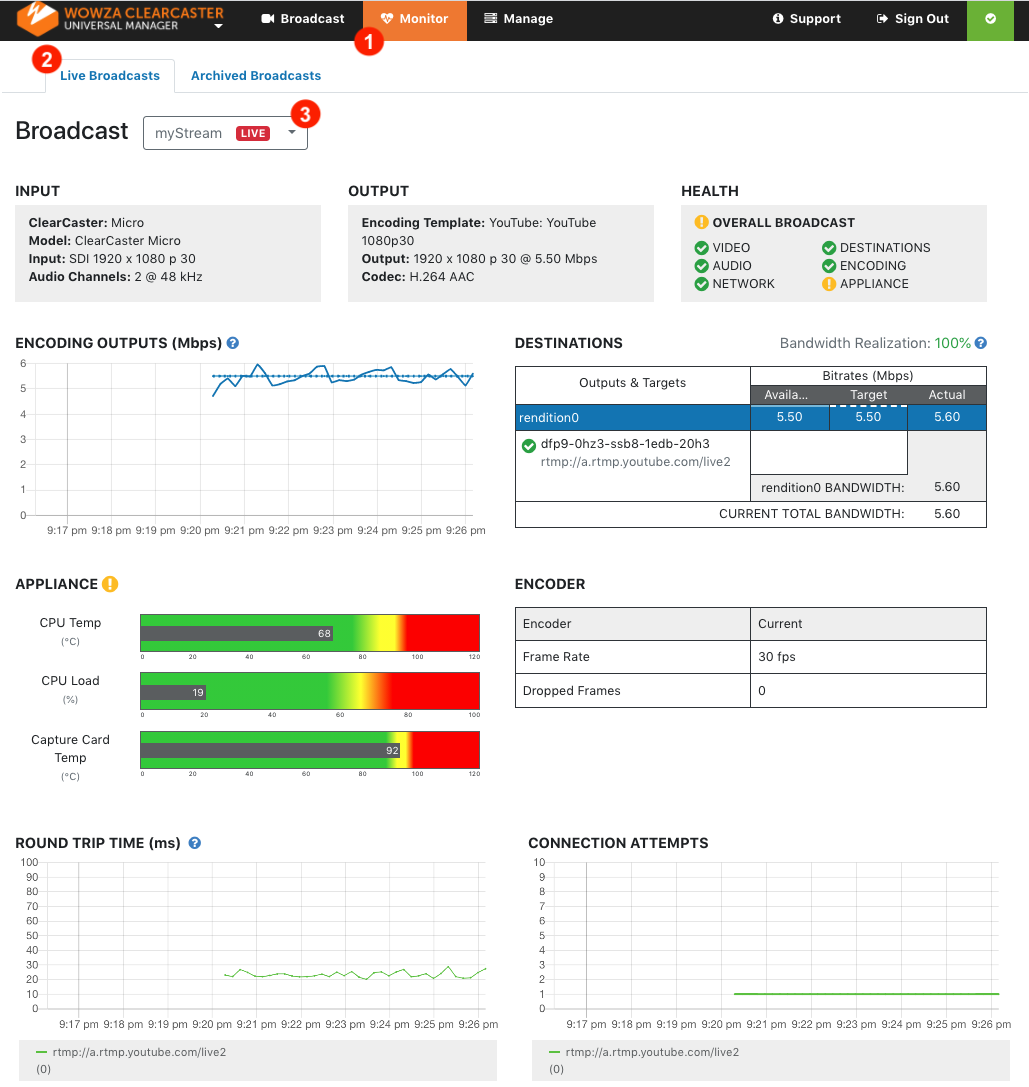

View stream health data

The Monitoring dialog is only available when the ClearCaster is associated with a broadcast and has a live video source connected.

The Monitoring dialog displays information about the live source that is connected to the ClearCaster appliance.

Configure appliance settings

The Settings dialog is only available if the ClearCaster is powered on.

The settings configured in the Settings dialog are applied to all broadcasts.

1 Name the ClearCaster appliance. Make sure to click Save before clicking OK, or the name won't be applied.
2 Configure the ClearCaster appliance to broadcast to Facebook Live (Facebook.com), the default, or to Workplace by Facebook (Facebook Workplace). Note that using your ClearCaster with Workplace by Facebook is by invitation only. Contact Wowza Support to request access. See Configure Wowza ClearCaster to stream to Workplace by Facebook.
3 Configure the Capture Settings to use when two sources are connected to the ClearCaster appliance. See Specify Wowza ClearCaster video input port monitoring and capture in Facebook mode.
4 Configure the Audio Level for all broadcasts associated with the ClearCaster appliance. See Adjust the Wowza ClearCaster broadcast audio level in Facebook mode.
5 Configure the Output Aspect Ratio to use for all broadcasts. The default value is to match the live video source (Match Input Source), but you can also select Square (1:1), Standard (4:3), or Vertical (9:16). See Configure the aspect ratio of Wowza ClearCaster broadcasts in Facebook mode.
6 Configure the ClearCaster appliance to Broadcast at 60 frames per second (60 fps). This is ideal for high-motion content. Enabling this appliance-level setting makes 60 frames per second a configurable option for individual broadcasts. See Stream Wowza ClearCaster high-motion video in Facebook mode.
7 Configure the countdown duration, in seconds, when you go live. This countdown is displayed on the ClearCaster LCD screen and, if connected, the Talent View screen. See Monitor viewer engagement and cue talent in Wowza ClearCaster Facebook mode.
8 Configure the layout of the Talent View screen for monitoring the broadcast. The default selection displays viewer comments as well as a small preview of the video broadcast. Alternatively, you can select full-screen video and only see user reactions and emojis.
9 Configure the Titling and Graphics to use for all broadcasts associated with the ClearCaster appliance. When a Vidpresso or Custom URL is provided, those graphics are applied to all broadcasts. If set to None, no default titling and graphics are applied to broadcasts, but you can add titling and graphics to individual broadcasts.
10 Configure the Audio Channel Mapping settings to use for all broadcasts associated with the ClearCaster appliance.
11 Configure path optimization for Facebook Live broadcasts.
12 Send Logs to Wowza support if you need assistance.
13 Restart the ClearCaster appliance remotely.

Manage broadcasts in Facebook mode

1 Use the Broadcasts tab to access a list of live, preview, and draft broadcasts associated with your Wowza and Facebook accounts. From this page, you can create new broadcasts, manage existing broadcasts, and monitor and end live broadcasts.
2 Click Create Broadcast to create a new broadcast. After specifying the Facebook destination and settings, you'll be taken to the broadcast details page where you can finish configuring your broadcast. See Create a Wowza ClearCaster broadcast in Facebook mode.
3 View a list of all broadcasts currently associated with your Wowza and Facebook accounts. The list organizes broadcasts in the following order: Live Broadcasts, Preview Broadcasts, Scheduled Broadcasts, and Draft Broadcasts. Placing live broadcasts at the top of the page makes it easy to monitor, modify, and end the broadcasts. Use this page to Edit all of your broadcasts. If you have any Preview or Scheduled broadcasts, you can Go Live from this page. If you've configured redundancy for your broadcast, you can also use this page to manually switch between the primary and redundant ClearCaster appliances. See Manage your Wowza ClearCaster broadcasts in Facebook mode and End a Wowza ClearCaster broadcast in Facebook mode

Configure Facebook Live broadcasts

1 When you're finished configuring the broadcast, click Return to Broadcast List to return to the Broadcast page.
2 View the status of your broadcast: Draft, Preview, or Live.
3 Use the Broadcast Setup tab to select the ClearCaster appliance to use and add a Title and Description for the broadcast. If you have more than one ClearCaster registered to your Wowza account, you can also select a backup ClearCaster to be used in case of a failure with the stream from your primary ClearCaster. See Set up redundant Wowza ClearCaster live streams in Facebook mode. Note that a ClearCaster can't be associated with more than one broadcast at a time.
4 Use the Monitoring tab to view and monitor stream health metrics for the connected live video source. This tab is only visible when a broadcast is live or in preview. The associated ClearCaster must have a live video source connected. See Monitor Wowza ClearCaster live stream health in Facebook mode.
5 Use the Simulcast tab to select a simulcast target as well as start and stop the target Wowza Streaming Cloud live stream. See Simulcast a Wowza ClearCaster Live Stream on Facebook Live and Wowza Streaming Cloud.
6 Use the More Options tab to configure a variety of other broadcast settings, such as adding tags, publishing as a continuous live broadcast, configuring broadcast-specific titling and graphics, and specifying the audio channels to use.
7 View a preview of the live video source connected to the ClearCaster appliance associated with the broadcast. This is only available for preview broadcasts. When you go live, the preview ends and is replaced with a link to the Facebook post so that you can verify that the broadcast is posted and playing correctly in Facebook.
8 If Allow embedding is enabled under the More Options tab, you can click Get Embed Code to generate the code needed to embed the live video broadcast on a webpage you manage.
9 Go Live is only available for Preview streams. The ClearCaster associated with the broadcast must have a live video source connected. After a broadcast is Live, the Go Live button is replaced with an End Broadcast button.

Manage simulcast targets

1 Use the Simulcast tab to access a list of Wowza Streaming Cloud live stream targets that are available to simultaneously broadcast (simulcast) to Facebook Live and Wowza Streaming Cloud. From this page, you can add new targets and delete existing targets.
2 Use the Wowza Streaming Cloud live stream's Connection Code to add new simulcast targets (Add Target). See Simulcast a Wowza ClearCaster Live Stream on Facebook Live and Wowza Streaming Cloud.
3 Delete Selected simulcast targets if any targets are selected in the list. See Manage your ClearCaster simulcast targets.
4 View a list of all simulcast targets that are available for simulcasting. Note that you must check the Simulcast tab on the broadcast details page or sign in to Wowza Streaming Cloud to see the status (started or stopped) of each simulcast target. The Wowza Streaming Cloud live streams will automatically stop after 20 minutes of inactivity. See Manage your ClearCaster simulcast targets
