How to publish and play a live stream (MPEG-TS over TCP/IP)

You can set up an application that ingests content from a live source that provides a stream using the MPEG-2 Transport Stream (MPEG-TS) protocol over a TCP/IP connection to Wowza Streaming Engine™ live streaming software.

Note: If your MPEG-TS encoder will deliver a live stream to Wowza Streaming Engine over a UDP connection, see How to publish and play a live stream (MPEG-TS based encoder).

Contents


Set up a live application to ingest the MPEG-TS (TCP/IP) stream
Publish the MPEG-TS (TCP/IP) stream to Wowza Streaming Engine
Test the MPEG-TS (TCP/IP) stream using video test players
Adaptive bitrate streaming
Troubleshooting
More resources

Set up a live application to ingest the MPEG-TS (TCP/IP) stream


This section shows you how to set up a live streaming application in Wowza Streaming Engine Manager. The live stream is sent to the streaming engine from a live source that delivers a stream in the MPEG-2 Transport Stream (MPEG-TS) format. Users play the live stream to view the event as it happens. The example uses an application named live, which is included in default Wowza Streaming Engine software installations. If you want to create a new live streaming application, you can use this same procedure.

You can use Streaming Engine Manager with the latest versions of most web browsers that support HTML5 and Cascading Style Sheets level 3 (CSS 3). We recommend the Google Chrome browser.

  1. In Wowza Streaming Engine Manager, click the Applications tab at the top of the page.

  2. Configure the live application:

    1. In the Applications contents panel, click live, and then click Edit. (This example uses the installed live application. If you want to create a new live streaming application, click Add Application in the contents panel, and then click Live. Follow the instructions in the UI.)



    2. On the live page, select all of the Playback Types, and then click Save.



      The following alert appears after every configuration change. You can wait until all changes are completed before you restart.

  3. Configure playback authentication:

    1. In the contents panel, click Playback Security, and then click Edit.



    2. On the Playback Security page, under Client Restrictions, select No client restrictions, and then click Save.

  4. Restart the application.

Publish the MPEG-TS (TCP/IP) stream to Wowza Streaming Engine


This section provides the basic steps for creating a .stream file to publish your live stream to the Streaming Engine media server.

  1. Consult your live source documentation to configure an outgoing MPEG-TS live stream.

  2. Create the .stream file:

    1. In the Server contents panel, click Stream Files, and then click Add Stream File.



      Note: You can also start the procedure to create a .stream file in the Applications contents panel for the live application.
    2. In the Add Stream File dialog box, enter a name for the new stream file, enter a Stream URI, and then click Add.

  3. Start the stream:

    1. In the Server contents panel, click Stream Files, and then click the Connect icon for the stream file you created in step 2.



    2. In the Connect a Stream File dialog box, select live in Application Name and mpegtstcp in MediaCaster Type, and then click OK.



    3. The Connection successful notification is displayed.

Test the MPEG-TS (TCP/IP) stream using video test players


In Wowza Streaming Engine Manager, click Test Players in the upper-right corner of the live application page. The Test Players window that opens includes test players that are pre-configured to stream a live stream named myStream over various streaming formats.

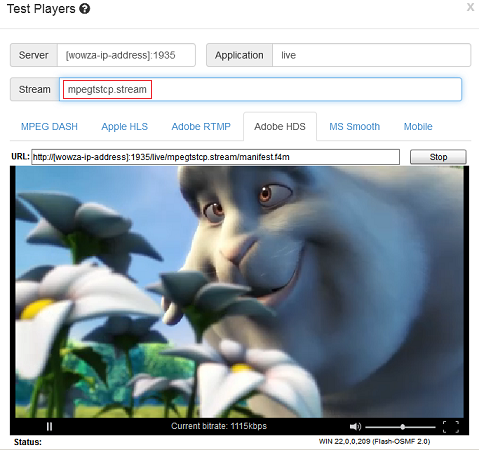

Each tab in the Test Players window either hosts a test player that you can use to play the live stream or provides instructions for playing the live stream. For example, to use the Adobe HDS protocol to play mpegtstcp.stream, click the Adobe HDS tab, enter the information below, and then click Start.

  • Server: Enter [wowza-ip-address]:1935.

  • Application: Enter live.

  • Stream: Enter mpegtstcp.stream.



The result when using the Adobe HDS tab on the player is the following URL:

http://[wowza-ip-address]:1935/live/mpegtstcp.stream/manifest.f4m

The test players are also online on our Video Test Players webpage.


Adaptive bitrate streaming


To implement adaptive bitrate (ABR) streaming, you can ingest mpegtstcp.stream through Wowza Transcoder to create a Synchronized Multimedia Integration Language (SMIL) file. For details, see How to create and play SMIL files with streams created by Wowza Transcoder.

Troubleshooting


Property to change AAC packetization method

A Wowza media server can use the mpeg4-generic and mp4a-latm (3gpp) packetization methods to output AAC audio. The default packetization method is mpeg4-generic. To switch to mp4a-latm (3gpp), do the following:

  1. In Wowza Streaming Engine Manager, click the Applications tab and then click the name of your live application (such as live) in the contents panel.

  2. On the live application page Properties tab, click Custom in the Quick Links bar.

    Note: Access to the Properties tab is limited to administrators with advanced permissions. For more information, see Manage credentials.
  3. In the Custom area, click Edit.

  4. Click Add Custom Property, specify the following settings in the Add Custom Property dialog box, and then click Add:

    • Path: Select /Root/Application/RTP.

    • Name: Enter audioPacketizerAAC.

    • Type: Select String.

    • Value: Enter com.wowza.wms.rtp.packetizer.RTPPacketizerMPEG4LATM.
  5. Click Save, and then restart the live application to apply the changes.

Property to import AC-3 elementary streams

A Wowza media server can import AC-3 elementary streams, using Apple HLS and MPEG-DASH streaming to allow Dolby Digital (AC-3) and Dolby Digital Plus (Enhanced AC-3) audio from MPEG-TS encoders to pass through unaltered for delivery. This lets your customers experience immersive surround-sound audio when streaming on media devices such as Apple TV, Sony PlayStation 3 (PS3), hybrid set-top boxes, and smart TVs. To import AC-3 elementary streams, do the following:

  1. In Wowza Streaming Engine Manager, click the Applications tab and then click the name of your live application (such as live) in the contents panel.

  2. On the live application page Properties tab, click Custom in the Quick Links bar.

    Note: Access to the Properties tab is limited to administrators with advanced permissions. For more information, see Manage credentials.
  3. In the Custom area, click Edit.

  4. Click Add Custom Property, specify the following settings in the Add Custom Property dialog box, and then click Add:

    • Path - Select /Root/Application/RTP.

    • Name - Enter mpegtsImportAC3.

    • Type - Select Boolean.

    • Value - Enter true.
  5. Click Save, and then restart the live application to apply the changes.
Note: The mpegtsImportAC3 property will apply to all streams delivered by the application. For more information on only changing the property for a single stream, see How to specify per-stream settings in .stream files.

Property to configure I-slice keyframe interpretation

By default, I-slices are treated as keyframes. You can add the isISliceKey property to your Wowza media server live application configuration if you don't want I-slices to be treated as keyframes. For more information, see How to set up I-slice keyframe interpretation.
