Wowza ClearCaster

Live streaming encoders with unmatched cloud control.

Talk to a Sales Expert

Manage, configure, and deploy your entire encoder fleet from anywhere in the world. Just plug it in, and ClearCaster auto-configures encoder settings and monitors your connection in real-time. Our encoders provide reliable streams in the best picture quality and offer high-end production features like frame-accurate start times and graphics and slates.

What Makes Wowza ClearCaster a Notch Above The Rest?

cloud server icon

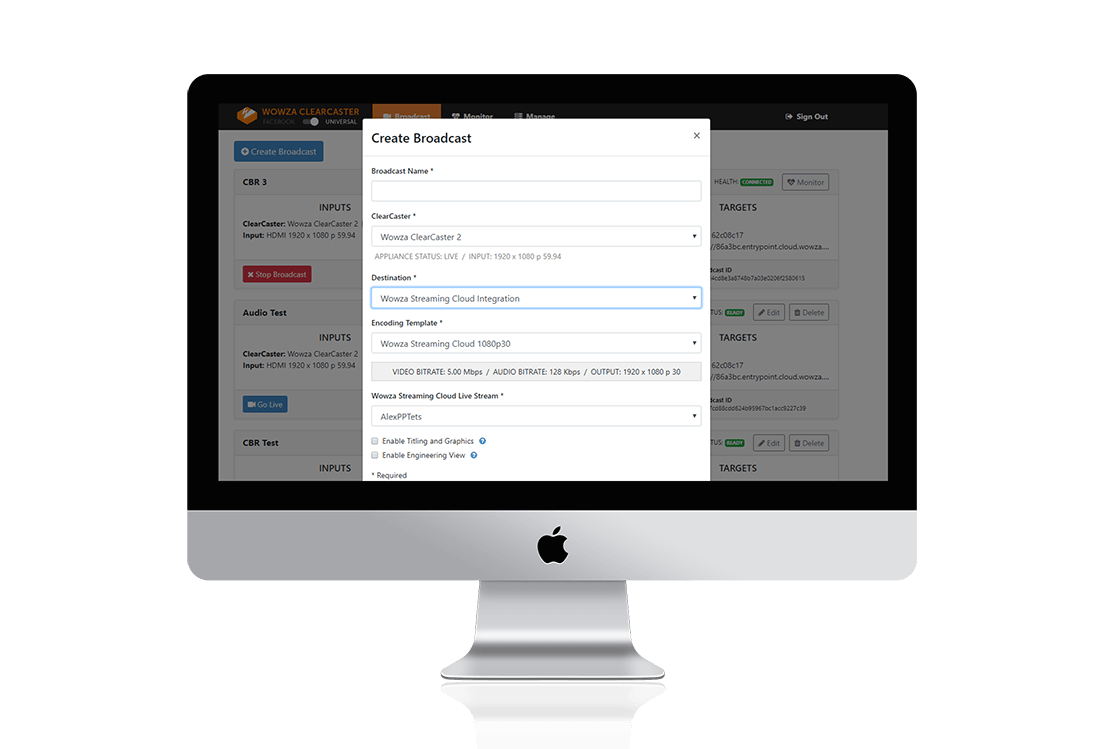

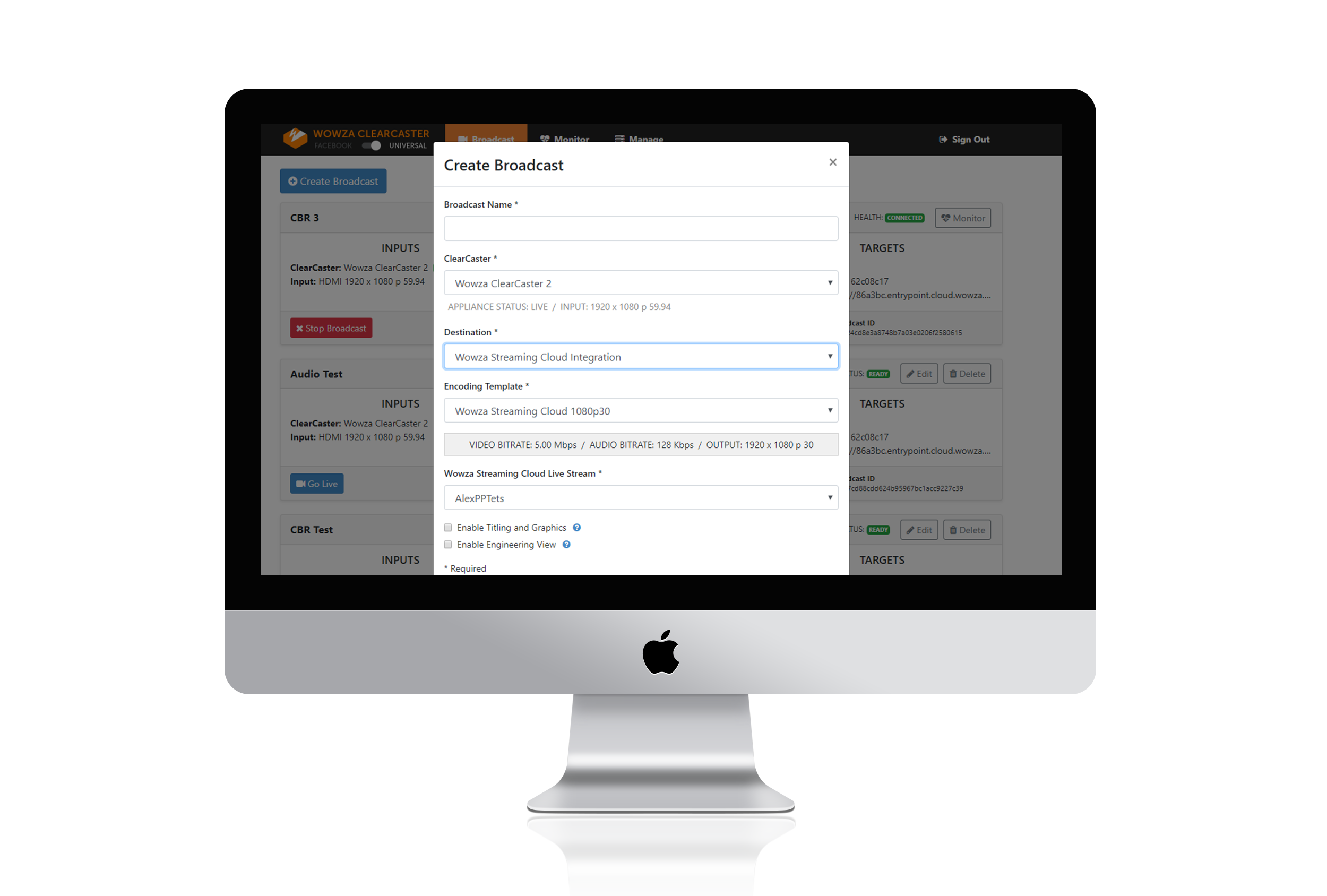

Cloud Management

Set up broadcast templates while managing thousands of streams with a scalable API.

wrench tool custom code icon

Customized Configuration

Use custom workflows, application integrations, and programmable architecture.

metrics and monitoring icon

Real-Time Monitoring

Rapidly identify any issues with your infrastructure globally with real-time alerts.

user interface icon

Streamlined User Interface

ClearCaster’s UI is simple yet powerful, allowing you to go from zero to one in a snap.

4k icon

Professional Quality

Rock-solid reliability and high video quality are the pillars of professional-grade streaming.

global auction streaming

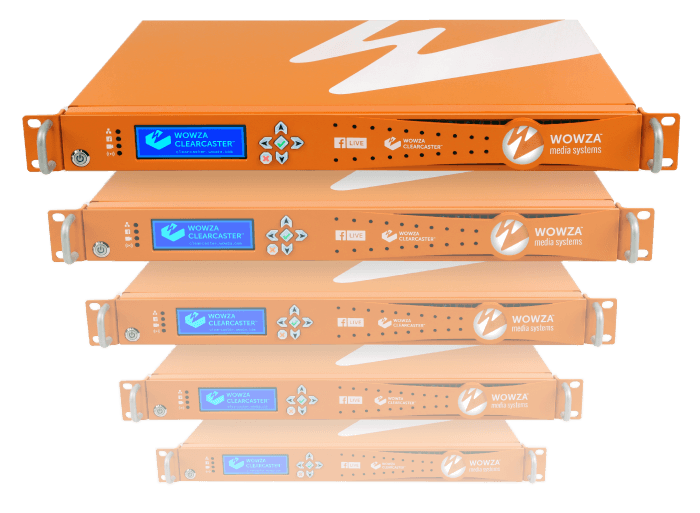

End-to-End Redundancy

Including power, encoding, network, and ingest points.

internet of medical things icon

Simplified Streaming

Get streaming quickly with simple workflows and access to best practice encoding templates.


Choose the Best Live Streaming Encoder for You

live streaming software

Wowza ClearCaster Enterprise

Key Features

  • Reliable 4K video delivery with enterprise-class components
  • Rack-mountable; comes with pre-installed kit
  • Supports Custom Wowza Linux environment
  • Local and cloud recording and storage capabilities

Additional Features

  • Remote management with live monitoring
  • Closed captions, titling, and graphics

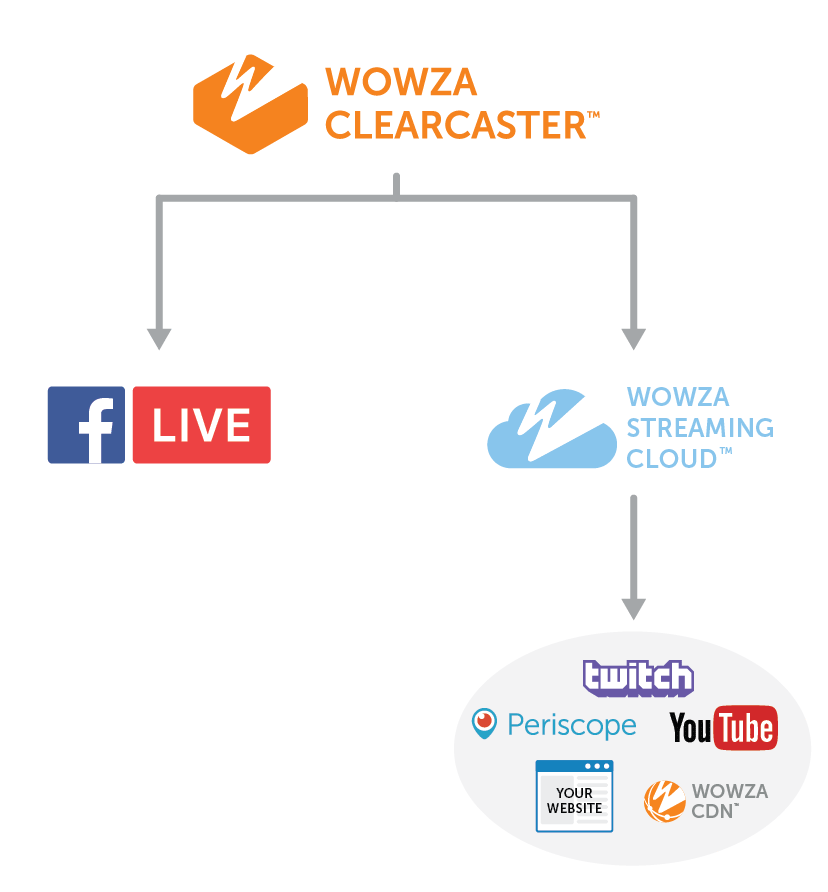

  • Multi-target/output
  • HEVC/H.265 and SRT
live streaming software

Wowza ClearCaster Micro

Key Features

  • Small and lightweight for on-the-go encoding
  • Powerful mini-work station; perfect for challenging network conditions and locations
  • Supports Custom Wowza Linux environment
  • Local and cloud recording and storage capabilities

Additional Features

  • Remote management with live monitoring
  • Closed captions, titling, and graphics
  • Multi-target/output
  • HEVC/H.265 and SRT
ClearCaster Hardware Comparison Chart
ClearCaster Micro ClearCaster Enterprise
Form Factor 6”x6”x1” 2RU
Power 12V DC Dual 110V AC (redundant)
Network 10/100/1000 Mbps 10/100/1000 Mbps
Video In 1080p60 2160p30
Video Out Display Port Output HDMI/Display Port Output
Connections 1 x 3G-SDI Input and SDI Loop 1 x HDMI 1.4 / 1 x 6G-SDI Inputs
Warranty 1 Year 3 Year
Cloud Orchestration Price $750 annual subscription $750 annual subscription
Support Standard Standard
A/V Inputs:
Physical: 1 x 3G-SDI/HDSDI BNC input, 1 x 3G-SDI/HDSDI BNC loop through, IP 1 x MPEG-TS(UDP, SRT); RTSP; RTMP, HLS via pull only
Input Resolutions & Frame Rates:
Maximum Raster HD1080p60; de-interlacing support up to 1080P59.94; up to 1080i/P60 (lower frame rates, resolutions support); scaling support
Codec Support:
Video Inputs: H.264; via IP input H.265, MPEG-2 support
Video Outputs: H.264; H.265
Audio Inputs: Embedded audio, Via IP input AAC, AC-3 (Dolby Digital), MPEG-1 layer 2, MP3 support
Audio Output: AAC
Captions:
Embedded CEA-608/708 closed captions
Output Resolutions:
Up to 1080p60; Encode up to 1 x 1080p + 1 x 720p rendition
Support for high frame rates at lower resolutions
Controllable aspect rations and frame rate; all outputs support multiple targets
Output Formats:
RTMP/RTMPS; MPEG-TS (unicast, multicast); RTSP/RTMP/SRT
Recording:
Fragmented MP4; record multiple outputs; store on appliance and in cloud
Network:
1 GB Ethernet; DHCP support; manual network configurable
System Control:
Cloud-based browser control and template management
Centralized API (GraphQL); user management
Hardware:
Micro PC, dimensions 6.9 x 6.9 x 1.34 inch (175 x 175 x 34 mm) 1.040 L
External 12V PSU Dimensions: 2.68 x 2.68 x 1.18 inches 6.8 x 6.8 x 3 cm
Weight 2.62 lbs / 1.19 kg
A/V Inputs:
Physical: 1 x 6G-SDI/HDSDI BNC input, 1 x HDMI 1.4a, IP 1 x MPEG-TS(UDP, SRT);RTSP; RTMP, HLS via pull only
Input Resolutions & Frame Rates:
HD 2160P30 (4K); de-interlacing support
Up to 1080i/P60 (lower frame rates, resolutions support); scaling support
Codec Support:
Video Inputs: H.264; via IP input H.265, MPEG-2 support
Video Outputs: H.264; H.265
Audio Inputs: Embedded audio, via IP input AAC, AC-3 (Dolby Digital), MPEG-1 layer 2, MP3 support
Audio Output: AAC
Captions:
Embedded CEA-608/708 closed captions
Output Resolutions:
Up to 2160p30; Encode up to 2160P renditions with Full ABR ladder
Support for high frame rates at lower resolutions
Controllable aspect rations and frame rate; all outputs support multiple targets
Output Formats:
RTMP/RTMPS; MPEG-TS (unicast, multicast); RTSP/RTMP/SRT
Recording:
Fragmented MP4; record multiple outputs; store on appliance and in cloud
Network:
1 GB Ethernet; DHCP Support; manual network configurable
System Control:
Cloud-based browser control and template management
Centralized API (GraphQL); user management
Hardware:
Dual 600W fully redundant power supplies.
Dimensions: 17.3 x 3.5 x 16 inches / 43.94 x 8.89 x 40.64 cm
Weight 18 lbs / 8.16 kg

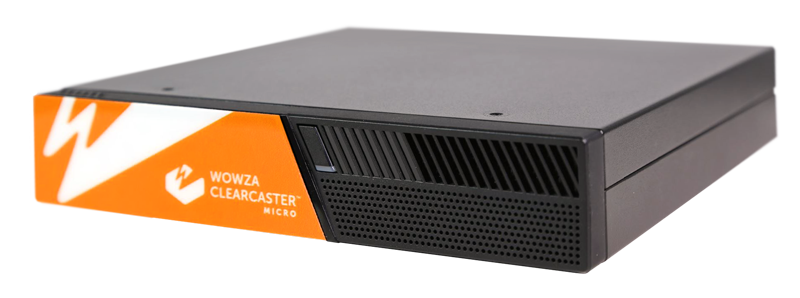

ClearCaster Micro

Front

cc micro front

Back

cc micro back
Click to Enlarge

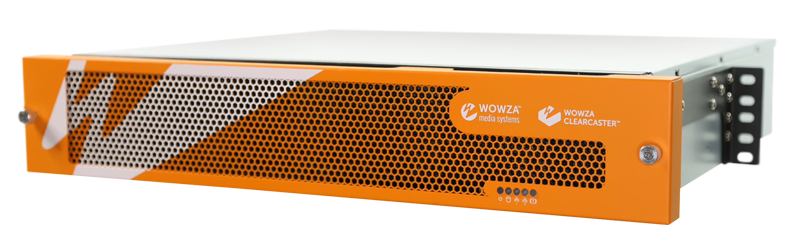

ClearCaster Enterprise

Front

cc enterprise front

Side

cc enterprise side

Back

cc enterprise back
Click to Enlarge

cc micro back large

cc enterprise back large

Frequently Asked Questions

What is the cost of a Wowza ClearCaster Cloud Orchestration subscription?

Wowza ClearCaster Cloud Orchestration is $750 per year, per channel with an auto-renewal subscription.

What is a Wowza ClearCaster Cloud Orchestration channel?

A ClearCaster Cloud Orchestration subscription by default includes one channel, which covers one device. If you have more than one ClearCaster, you will need a channel for each device you wish to have active and use. Channels are transferable within your account. If you need to retire one of your devices, its channel can be used with another one of your ClearCaster devices.

What does a Wowza ClearCaster Cloud Orchestration subscription include?

Wowza ClearCaster Cloud Orchestration includes access to our cloud-based ClearCaster manager and GraphQL API, software updates, access to new features, and standard support from Wowza. It does not include hardware, which must be purchased separately. New Hardware can be purchased through our third-party vendor CIARA, a Hypertec brand.

What is considered a legacy ClearCaster unit?

Legacy ClearCaster devices include ClearCaster Pros and any ClearCaster device purchased prior to September 1, 2020.

What happens if I don’t purchase a ClearCaster Cloud Orchestration subscription?

Any new ClearCaster devices (Micro or Enterprise) will not be able to stream unless there is an active subscription with enough channels for all devices. For legacy ClearCaster devices, once your current Maintenance and Support contract expires, your legacy ClearCaster devices will begin to run in Subscription Expired Mode. You will only have access to a single template that can stream to a single destination at 1080p60.

What is Subscription Expired mode?

Subscription Expired mode is the state your legacy ClearCaster device will enter if you do not have an existing Maintenance and Support contract or a ClearCaster Cloud Orchestration Subscription. You will only have access to a single template that can stream to a single destination at 1080p60 with a video bitrate of 13.67 Mbps and an audio bitrate of 128 Kbps. Archived logs or recordings from the cloud will not be available.

Can I cancel or return my Wowza ClearCaster Cloud Orchestration order?

No. Wowza has a no returns or cancellations policy for Wowza ClearCaster Cloud Orchestration sales.

How does support work for Wowza ClearCaster Cloud Orchestration?

Standard support is included with purchase of Wowza ClearCaster Cloud Orchestration. Support includes email and web-based ticketing. Users can also access our free online user forums. Customers who purchase higher levels of Wowza support, such as Silver, Gold or Platinum will receive the additional benefits that those plans offer.

How does the Hardware warranty work?

For Micro and Enterprise devices, if you have an issue with your ClearCaster streaming encoder, you can contact Wowza through valid support methods. If Wowza confirms there is an issue with your appliance, they will contact the Hardware manufacturer who will then issue a replacement. Wowza support will continue to assist with legacy devices with Hardware issues while your device is still covered under your initial Hardware warranty. Renewing or extending Hardware warranty is not available on legacy units. If you require units with active Hardware warranty, you can check out our new family of ClearCaster appliances.

How is ClearCaster Support changing?

We are restructuring ClearCaster support to align with the support model for our other products. Standard support comes included and you can purchase premium support if you desire. Support plans specifics can be found here.
